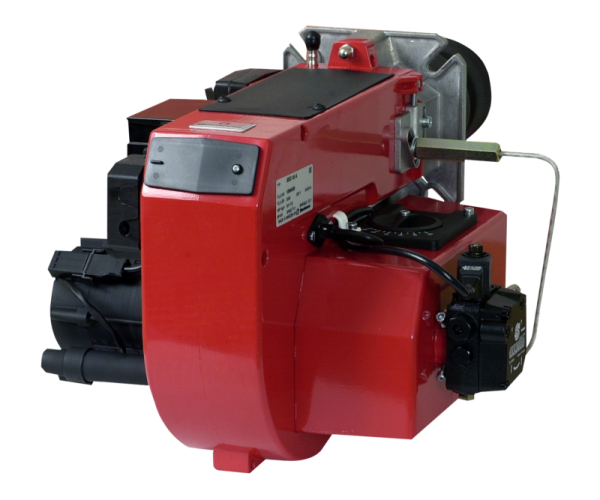

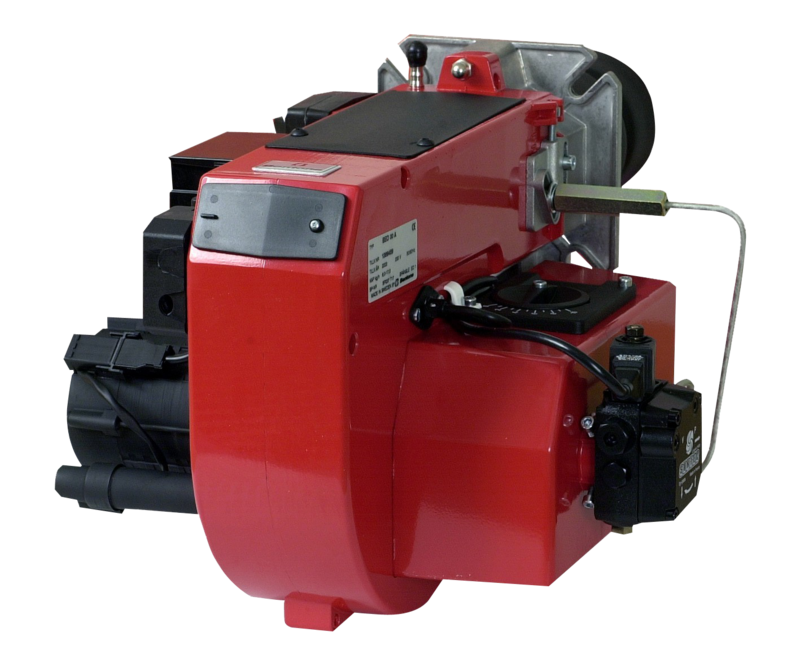

MOL350 BURNER
Brand:NUWAY
This burner is typically suited for commercial hot water boiler and steam boiler systems.
Available for use with light oil Class D fuel with
· single stage on/off
· 2 stage high/low operation.
Additional Information
| Burner type | Oil Fired |
|---|---|
| Output | 95 – 350 |
| Series | Oil > MOL Series |
Technical data
Output: 95 - 350 kW Output
| Type | MOL 350 S1L | MOL 350 T1L | ||
| Capacity | kW | 107-350 | 95-350 | |
| Motor | V/Hz | 230/50 | 230/50 | |
| kW / A (Fuse) | 250 / 10 | 250 / 10 | ||
| Start / Run Current | Amps | 10.4 / 2.4 | 10.4 / 2.4 | |
| Control box | Landis & Staefa | Landis & Staefa | ||
| Fuel pump | Danfoss/Suntec | Danfoss/Suntec | ||
| 2-Stage | • | |||
| Gross weight | kg | 23 | 23 | |
| Volume | m3 | 0.11 | 0.11 | |
Key Features:
• Quick and easy installation
• Reliable and trouble free operation
• Industry standard components available
• Most components can be easily accessed allowing for easy maintenance.
All M Series burners have been design in accordance with EN676 and EN267.
Files & info
- MOL 350 S1L B40A Manual 1.34 Mb (pdf)
- MOL 350 T1L B40A2 Manual 286.02 Kb (pdf)
- MOL 350 S1L B40A Spares List 96 Kb (pdf)
- MOL 350 T1L B40A2 Spares List 109.13 Kb (pdf)
- MOL 350 Datasheet v1 378.58 Kb (pdf)
